Pressure Sensor Glow Plug

An optimized combustion performance obtained by the sensor and electronics in the glow plug pin, are the key elements of the remarkable reduction of the exhaust gases that can be achieved with the correct Pressure Sensor Glow Plug.

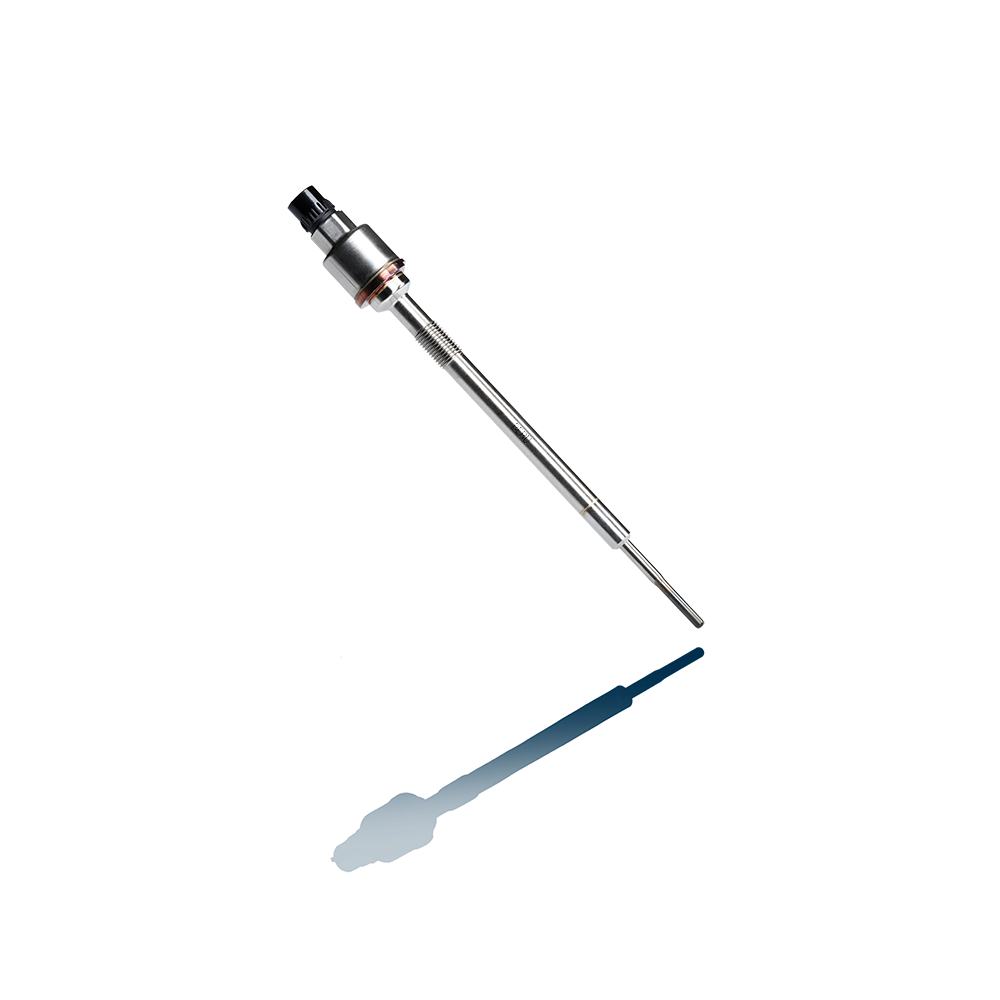

pressure-sensor-glow-plug

BERU® Pressure Sensor Glow Plug:
Forward-looking solution for a green future

pressure-sensor-glow-plug-packaging

Holder of numerous innovation awards, the BERU® Pressure Sensor Glow Plug has been developed to meet one very specific purpose: provide one of the best responses to the demands made on diesel engine in terms of particle reduction. Current and future exhaust gas limit values for diesel vehicles already and further will mean a drastic reduction in particles and nitrogen oxide in each cylinder.



Technical features



  • Optimised combustion: the PSG Glow Plug measures the pressure in the combustion chamber with an integrated sensor and reports this to the engine control electronics;
  • Sensor principle: piezoresistive;
  • Flexible heating rod for pressure transmission;
  • Robust sealing element between body and heating rod;
  • Miniaturised electronics integrated in the upper part of the glow plug;
  • Calibrated and customer-specific programmed;
  • Integrated concentric automotive plug.

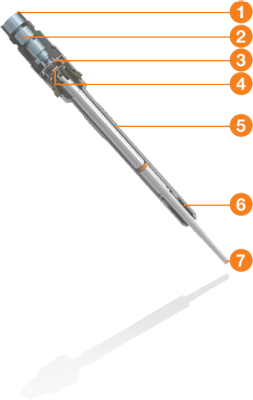

psg section

1 - Plug

2 - High voltage connection

3 - Circuit board with electronics

4 - Measuring diaphragm

5 - Glow plug body

6 - Gasket

7 - Glow plug heating rod

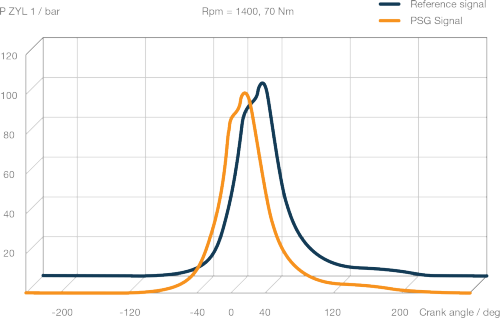

psg pressure curves in comparison

Pressure curves in comparison

The following pressure curves show the course of a PSG signal and a reference sensor signal in the combustion chamber of a test bench engine.

Technical data


Operating temperature:
Pressure range:

Sensor

Power supply (Vdd):
Output signal:
Bandwidth:
Accuracy:

Glow function

Current 60sec:
Temperature after 60sec:
Max. temperature:


-40 – 140°C (max. 150°C)
0 – 200 bar (max. 210 bar)



5,0 V or 3,3 V
ratio metric
0 to 5 kHz
± 2%



< 10 A
> 980°C
1100°C



QUICK-LOOK BENEFITS

Innovative

Forward-looking and technologically advanced features and performance results

Green

Optimised combustion resulting in low particle emissions levels

Exclusive

Exclusive and patented BERU® development

Use our Part Finder and check which glow plug is the one engineered just for your needs.
